LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

Product Categories
Chongqing Leomed Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

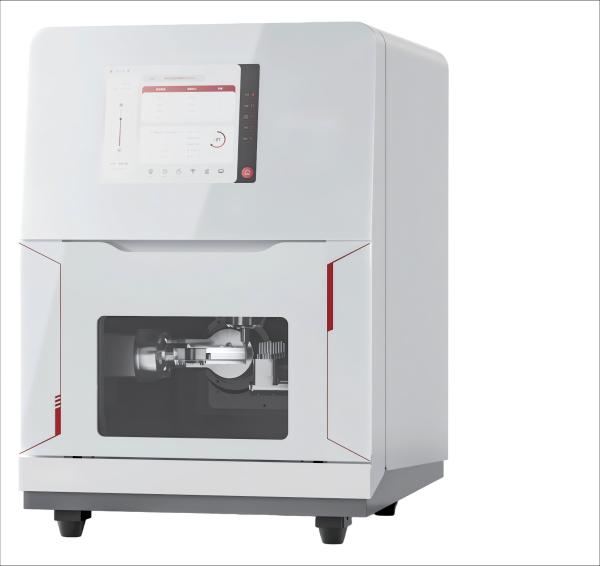

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

  • 1
  • 2
  • 3

Brand Name : LEOTECH

Model Number : LMD-5

Certification : IOS CE

Place of Origin : Chongqing, China

MOQ : 1 set

Price : $10000/sets

Product Name : LMD-5 CNC Mill

Material : Cast Iron + Mineral

Usage : Industrial Milling, Prototyping

Spindle Speed : 60,000 rpm

Control System : Industrial CNC

Tool Change : Automatic 10 Tools

Axis : 5-Axis

Power : 3.5KW

Weight : 150 kg

Calibration : ±0.05mm Accuracy

Contact Now

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

The LMD-5 CNC Milling Machine offers industrial-grade accuracy with automatic calibration system ensuring ±0.05mm error control. Equipped with a 2.5KW water-cooled spindle running at 60,000 RPM, it supports high-speed dry milling of zirconia, PMMA, and wax. The 5-axis configuration with A-axis 360° and B-axis +90° to -30° enables complex angular processing. Its anti-collision tool magazine and remote control functionality enhance operational safety and convenience.

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

Holder (Zirconia PMMA WAX)

Structure Parameters
Numbers of axes 5
Millable material Zirconia/PMMA/Wax
Processing method Dry Milling
Dimension 525x700x784mm
Weight 150 kgs
Automatic tool change quantity 10

Industrial-grade automatic calibration (erro ±0.05mm)

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

HiHigh Power Spindle

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

90 Degree Processsing

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

Remote control

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

Anti-Collision Tool Magazine

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

Compatible with All Mainstream CAM

LMD-5 CNC Milling Machine 60,000RPM Water-Cooled Spindle Industrial Automatic Calibration

Input

Power supply Single phase AC 220V 50/60Hz voltage
Power 3.5KW
Air supply pressure 6 Bar

Spindle

Power AC 2.5 KW
Cooling method Water cooling
Speed 60,000 rpm
Collet Φ4 mm

Route

X,Y,Z axis 160X115X105mm
A,B axis A:360° B:+90°,-30°
